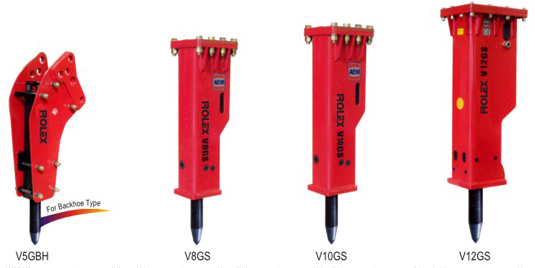

Hydraulic Rock Breaker |
| |
- Available from 0.8 of Tons mini-excavators to 50 Tons of large excavators
- Advanced Vibration absorber buffer system to reduce stress and impact wave
- Long durability with precise assembly
|
| |
 |
| |
| Specification |
Unit |
V3GS |
V4GS |
V5GS |
V8GS |
V10GS |
| |
|
|
|
|
| * Weight |
Kg |
175 |
220 |
295 |
430 |
570 |
| Impact Rate |
bpm |
600~950 |
550~800 |
500~750 |
460~750 |
400~800 |
| Operating Pressure |
bar |
90~120 |
90~120 |
95~130 |
95~130 |
130~150 |
| Relief Pressure |
bar |
140~160 |
140~160 |
150~170 |
170~180 |
180~190 |
| Oil Flow |
l/min |
25~40 |
30~45 |
35~50 |
45~85 |
45~90 |
| Tool Diameter |
mm |
53 |
59.5 |
68 |
74.5 |
85 |
| Pressure Line Size |
mm |
12 (1/2) |
12 (1/2) |
12 (1/2) |
19 (3/4) |
19 (3/4) |
| (in) |
| Return Line Size |
mm |
12 (1/2) |
12 (1/2) |
12 (1/2) |
19 (3/4) |
19 (3/4) |
| (in) |
| Suitable Carrier Weight |
ton |
1.2~3.5 |
3~6 |
3.5~9 |
6~10 |
7~12 |
|
| * Weight includes standard tool and top bracket |
| |

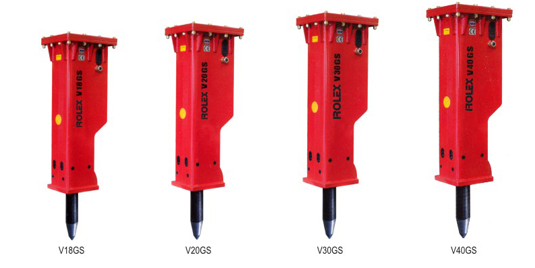

- Box Housing and Vertical mounting type
- High Efficiency with optimized control valve system
- High impact energy with gas-hydraulic mechanism
- Breaking hard rock, reinforced concrete and metallurgical slag
|
| |
 |
| |
| Specification |
Unit |
V12GS |
V18GS |
V20GS |
V30GS |
V50GS |
| |
|
|
|
|
| * Weight |
Kg |
1050 |
1268 |
1720 |
2340 |
3900 |
| Impact Rate |
bpm |
450~650 |
450~800 |
400~800 |
350~700 |
200~400 |
| Operating Pressure |
bar |
140~160 |
150~170 |
160~180 |
160~180 |
160~180 |
| Relief Pressure |
bar |
190~200 |
200~210 |
200~210 |
200~210 |
200~210 |
| Oil Flow |
l/min |
80~100 |
90~120 |
125~150 |
160~190 |
250~300 |
| Tool Diameter |
mm |
98 |
120 |
135 |
150 |
180 |
| Pressure Line Size |
mm |
19 (3/4) |
25 (1) |
25 (1) |
25 (1) |
32 (1 1/4) |
| (in) |
| Return Line Size |
mm |
19 (3/4) |
25 (1) |
25 (1) |
25 (1) |
32 (1 1/4) |
| (in) |
| Suitable Carrier Weight |
ton |
11~16 |
13~18 |
18~25 |
25~32 |
40~55 |
|
| |
| Weight includes standard tool and top bracket |
| |
| |
| |
